Lane International makes several different steel Pulling Irons, Lifting Hooks, Barrier Loops, Redi-Rock Lifters, and Manhole Steps in both A-36 steel and stainless steel. Just send us your drawings with dimensions, and we’ll take it from there.
Steel Products:
Median Barrier Loops
90 degree bend
Side View
Produced from 3/4” dia. round bar conforming to ASTM A-36. Available in plain finish or galvanized.
342489 24” 8”
34241090 24” 10”
34300690 30” 6”
34310690 31.5” 6”
Part No. A B
Top View
45 degree bend
Side View
Produced from 3/4” dia. round bar conforming to ASTM A-36. Available in plain finish or galvanized.
3439690 39” 6”
Part No. A B
Top View
Lifters for flat top slabs
Part #RPM110
Part #RPM112
Part #RPM115
Part #RPM108
Part #G4514 & #1016
Part #G4514
Part #1016

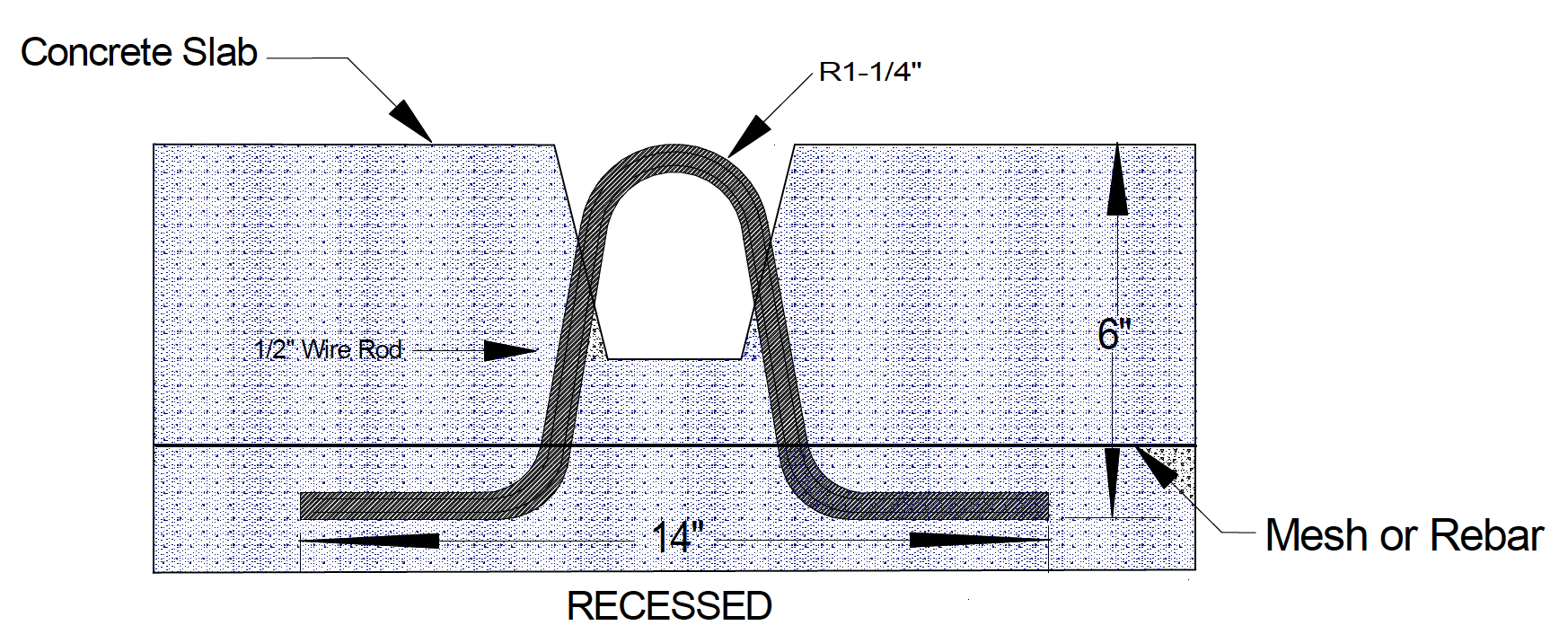

Part #614
pulling irons
Part #3407s
3/4” pulling irons
3/4" dia. A-36 Round Bar
Available in Plain Finish, Galvanized, Stress Relieved & Galvanized or Stainless Steel
Galvanizing conforms to ASTM A-123
Part #3455s
3/4” pulling irons
3/4" dia. A-36 Round Bar
Available in Plain Finish, Galvanized, Stress Relieved & Galvanized or Stainless Steel
Galvanizing conforms to ASTM A-123
Part #3465s
3/4” pulling irons
3/4" dia. A-36 Round Bar
Available in Plain Finish, Galvanized, Stress Relieved & Galvanized or Stainless Steel
Galvanizing conforms to ASTM A-123
Part #78678s
7/8” pulling irons
3/4" dia. A-36 Round Bar
Available in Plain Finish, Galvanized, Stress Relieved & Galvanized or Stainless Steel
Galvanizing conforms to ASTM A-123
redi-rock lifter
Part #RR-3807 & #RR-3812
Part # WD(wire dia.) L(length) W(total width) LL(leg length) IW(inside width) SWL(safe working load)
RR-3807 3/8” 7” 11.5” 3.75” 4” 4,125lbs.
RR-3807 3/8” 12” 15.5” 5.5” 4.25” 4,125lbs.
stainless steel pull rings
Part #RR-3807 & #RR-3812
Dia. Part No. A B C
3/4” SS3409 8-3/4” 6” 6”
3/4” SS3411 10-3/4” 6” 6”
3/4” SS3413 12-3/4” 6” 6”
3/4” SS3415 14-3/4” 6” 6”
7/8” SS7809 8-7/8” 6” 6”
7/8” SS7811 10-7/8” 6” 6”
7/8” SS7813 12-7/8” 6” 6”
7/8” SS7815 14-7/8” 6” 6”
