Polypropylene Vault Ladder
VL with Handrail
Vault Ladder Radius Brackets
Vault Ladder Radius Brackets
Vault Ladder Flat Brackets
Vault Ladder Flat Brackets
VL with no Handrail
Polypropylene Vault Ladder

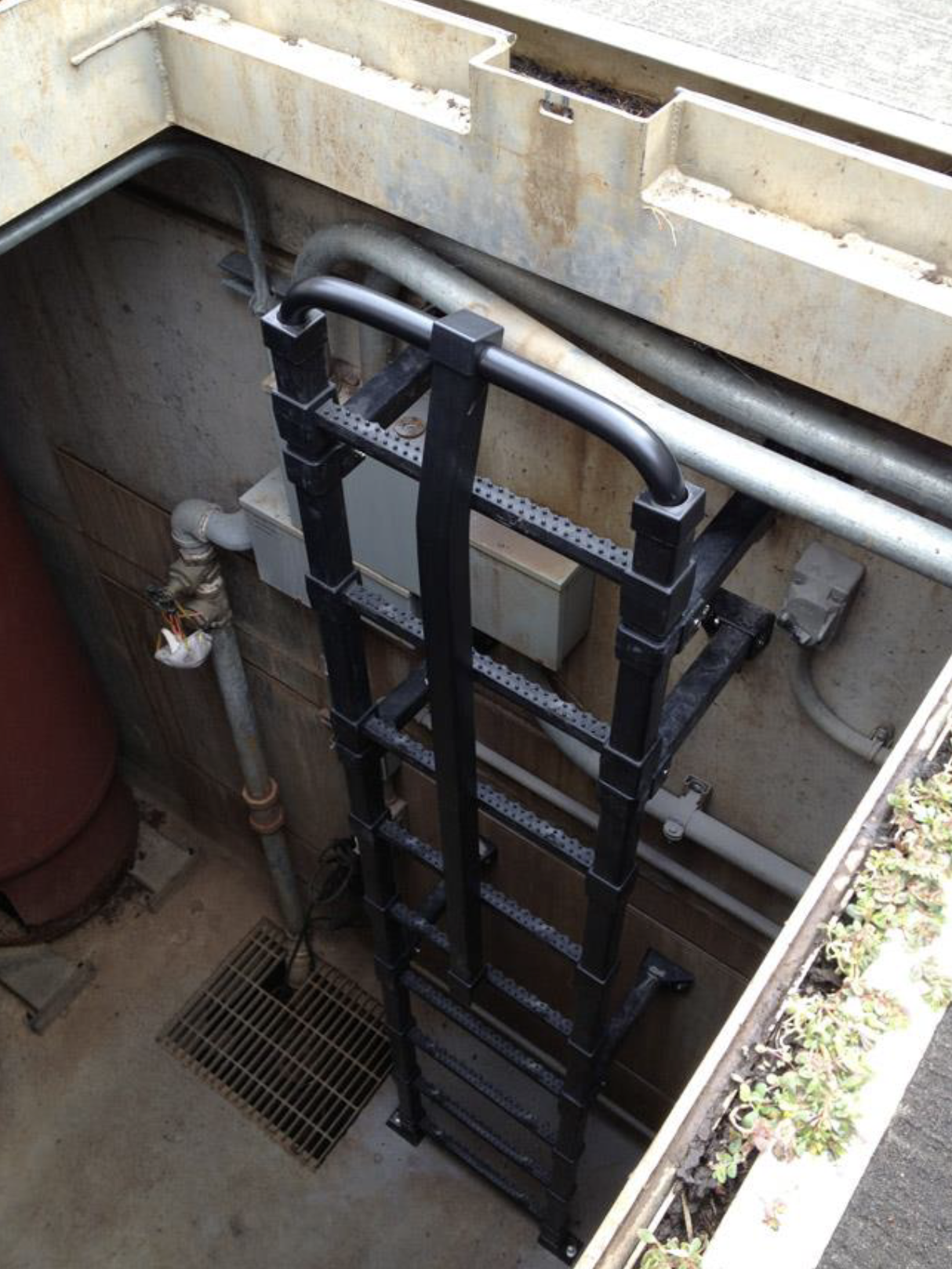

The Lane Polypropylene Vault Ladder is the latest innovation that provides affordable, safe and rust-free vault access especially in damp or corrosive environments. The ladder is available with or without a pull-up handrail extension. The custom-made ladders are constructed of aluminum and steel reinforced copolymer polypropylene and are available in any length up to 20’ long. Wall mounting brackets are available for flat wall or radius wall structures. The Lane Vault Ladder offers the precaster a versatile and superior ladder solution.
learn more:
The Lane Polypropylene Vault Ladder provides affordable, safe and rust-free vault access especially in damp or corrosive environments. The ladder is available with or without the pull-up handrail. Brackets for flat wall or radius wall structures are available.
Ladders meet all ASTM C-497 load requirements and OSHA 1910.26 and 1910.27 specifications.
Ladders are available in 2’-0” –20’-0” lengths.
Polypropylene Vault Ladder parts:

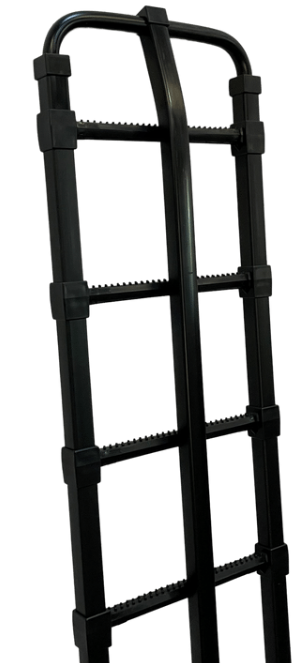

Vault Ladder with Pull-Up Handrail
product details:
Ladders with pull-up handrail available in 5 rung through 19 rung.
Polypropylene conforms to ASTM D-4101. Ladders meet all ASTM C-497 load requirements and OSHA 1910.26 and 1910.27 specifications.
Fasten ladder to floor and wall with 1/2” x 3-3/4” anchors. Anchors to be installed per manufacturers instructions.
Standard adjustable mounting bracket - 8” O.D.
Aluminum reinforced copolymer polypropylene rail 1-3/4” x 1-3/4” DIA.
Steel reinforced copolymer polypropylene rung 1-5/8” x 1-1/4” DIA. with molded finger grips, 12” C.C.
Aluminum and steel reinforced copolymer polypropylene pull-up handrail.
Vault Ladder (no handrail)
Ladders with pull-up handrail available in 2 rung through 19 rung.
Polypropylene conforms to ASTM D-4101. Ladders meet all ASTM C-497 load requirements and OSHA 1910.26 and 1910.27 specifications.
Fasten ladder to floor and wall with 1/2” x 3-3/4” anchors. Anchors to be installed per manufacturers instructions.
Standard adjustable mounting bracket - 8” O.D.
Aluminum reinforced copolymer polypropylene rail 1-3/4” x 1-3/4” DIA.
Steel reinforced copolymer polypropylene rung 1-5/8” x 1-1/4” DIA. with molded finger grips, 12” C.C.
